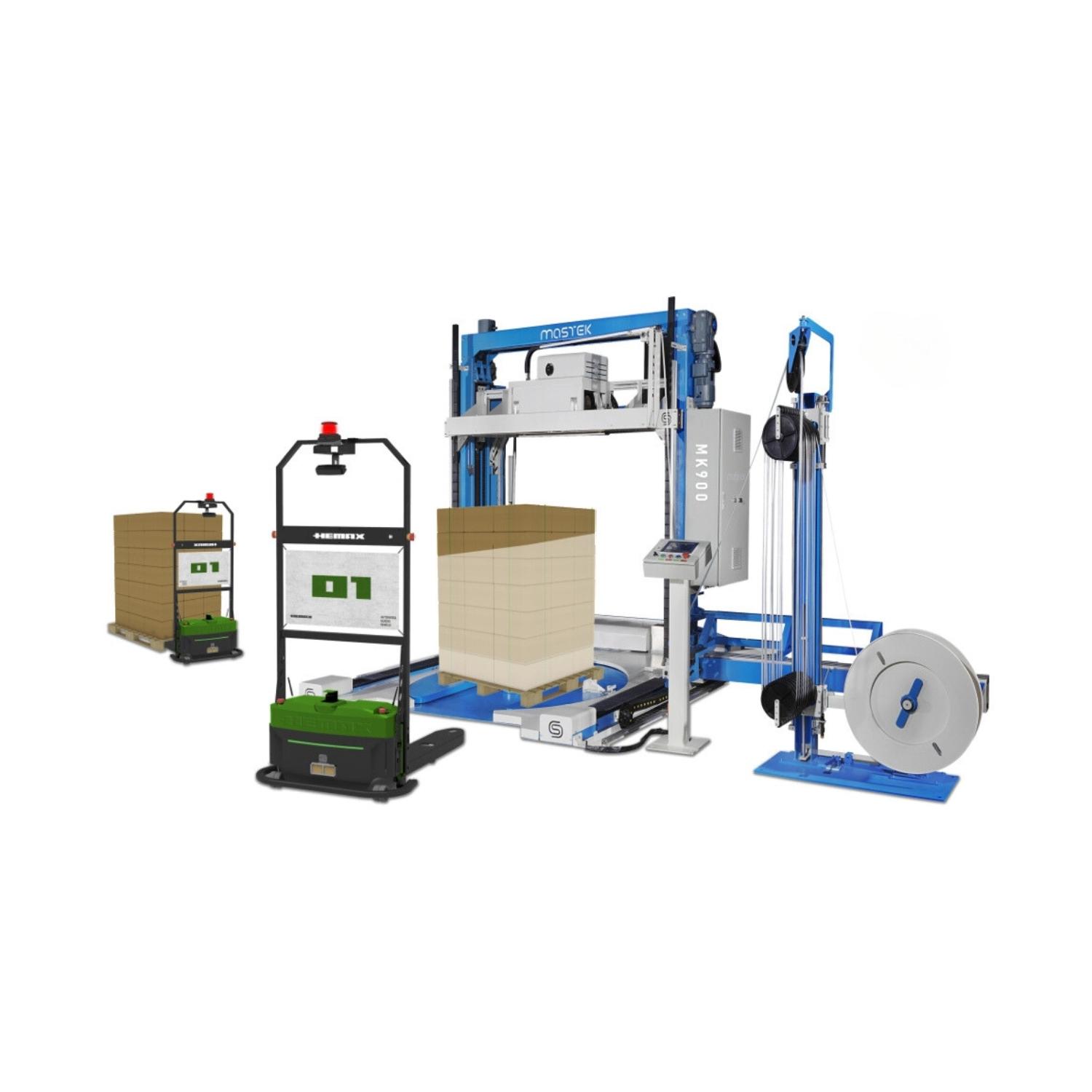

MK900 FULLY AUTOMATIC STRAPPING & WRAPPING ALL IN ONE MACHINE

Description

MK900 Function Desctription

①M Shape Turntable
800KG load weight, 1650mm size, It normal suit for Europe Type Pallet ,M shape turntable easy for Pallet Jack or AGV load pallet on machine, ( If pallet size over 1.2×1.2 or the pallet weight over 800KG, we will recommend use 1500KG loading Turntable and optional with Ramp for hand pallet jack load the pallet on machine )
②Moving Frame
Servo Drived Frame is standard function for MK900, it will let MK900 suit for different pallet size at same time. working with turntable, Patten will be : 2×0 2×2 0x2
③Fully Automatic Wrapping Film Function
Film carriage with 250% pre stretch rate, Fully automatic cutting and clamping film function, NO NEED manual do anything for stretch film function .it will be safe and convinent for operator.

MK900 Features

Pallet Strapping & Wrapping All In One Save Labor &space
●Fully automatic strapping machine for both
PET and PP,Servo drive moving frame suit for different pallet size .
●Fully automatic wrapping machine with pre-stretch 250%

SMART Operation System High efficiency
●Operation guidance (show by screen ) Smart Alarm & solution find in screen
●Fully automatic cutting and clampping film
●Remote start machine

Durable parts&Mutiple service Reliable Quality
● Ultrosonic Strapping Head SIEMENS Electric parts SICK sensor…
●3 years Warranty for Strapping Head
● IoT remote service +7×24 technical support service

DIMENSIONS OF MACHINE (in mm)

Option Description:

High Compatibility Turntable :MK900 Pro
1800mm Turntable with maximum 1500KG load weight ,maximum suit for 1.25×1.25 pallet .Suit for All kindly of pallet shape ( Straps Though Hole Should over 250mm lengthx80mm high ) ramp for hand pallet jack to load the pallet on machine

HEMAX AGV System:HM01（Base on SRC Laser SLAM ）
1000KG maximum load weight,Lift Height 174mm ,forks Height 104 Laser Radar + 3D Havcam
8 Hours working time Precise Positioning +/- 10mm

Mastek ultrasonic sealing heads have advanced strapping systems offering major advantages over traditional seal technologies like Heat weld .Using ultrasonic sealing, low amplitude high frequency vibrations are transmitted to the ends of the plastic strapping material creating a solid sealing. A custom ultrosonic of the new sealing unit, joins the strap ends at high speed for superior and consistent strapping seals.Unlike heat seal systems, SEPO II ultrosonic strap seals are made without the use of high temperature components, improving safety and generating lower emissions. The” less is more “design concept is operator friendly requiring minimal maintenance and reduced parts usage.

✮Less Wear Parts
✮Less preventative Maintenance .
✮Less Complicated inner design (each parts by module design ) Three Years Warranty For everythings of ultrosonic strapping head

✮ Ultrosonsic Sealing Both for PP &PET no Smoke ,No Dust, Low Noise Level
✮>90% of the strap breaking load
✮Servo system precise control every strap tension for consistent seal in any invironment.

✮Smart Slef Cleaning system ,Reduce Manual Clean action.
✮Smart End of Strap Position Detection ,Make sure straps always in right position by sensor .Reduce manual Checking.
✮Smart Tension Electric Adjustable Via HMI,More safer and visible

Drawing by mm
