Description
Features
Carton Erector Machine with Reliable Spare Parts
1. SIEMENS PLC
2. SIEMENS Touch screen
3. SMC Vacuum Generator
Carton Erector Machine is Easier Maintenance
1. All Sensor monitored by PLC
2. All Sensor with Visible Label
3. All Sensor with Visible Light
Smart & Safe Operation System
1. Pre-caution for Tape used up
2. Pre-caution for empty carton/box used up
3. Safety Door System
Eco Automatic Carton Erector For Big Size Carton Box
FOR maximum 500mm wide 600mm Length box
Remark: Width on left Size(front view), output side on right

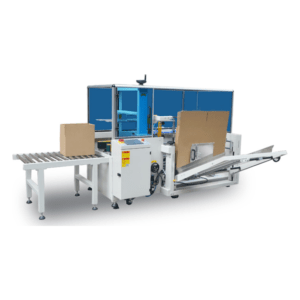

Carton Erector MO-01L
Length: 250-600mm Width150-500mm
Height:150-500mm
6 pcs sucker, and two folding bottom devices
Speed: 6-8ctn/min
For Humid & Corrosive Environments
SUS304 Stainless Steel
Carton Erector MO-01(stainless steel)
MO-01 with stainless steel 304 standard frame, and it’s suitable for humid environments, widely used in the food industry.
Remark: Width on left Size(front view), output side on right
TECHNICAL DATA
| Performance: | |||
| Throughput Speed | 10-12 Cases/Minute | ||
| Case (Outside Dimensions) |
250-500 mm L 250-400 mm W 120-400mm H |
||
| Case Types | |||
| Wall Types | Single & Double Wall
(test for multiple walls) |
||
| Bottom Seal | |||
| Tape | 48-72mm | ||
| Service Requirements | |||
| Air Supply | 6 Bar (80 Psi) | ||
| Dedicated Electric | 220V, 1ph, 50/60Hz | ||
| Machine Data | |||
| Magazine infeed Capacity | 100 cases (approximate) | ||
| Weight | 350 kg |
STANDARD FEATURE
| Cylinder | AIRTAC | ||
| Motor | GPG | ||
| Sensor | OMRON | ||
| PLC | SIEMENS | ||
| Touch Screen
Pre-caution for empty carton box Pre-caution for Tape used up Safety door system Vertical forming box output |
SIEMENS
|
||
| Certification | CE | ||
| Machine Warranty | 1 year | ||
| Optional | |||
| Bottom seal | Hot glue | ||
| For Small size box (48mm tape 15-20 ctn/min) |
Length: 180-250mm Width: 80-200mm Height: 100-200mm |
||
Automatic Carton Erector Machine Engineer Drawings
Automatic Carton Erector Packaging Line
Carton Erectors + flaps fold carton sealing machine + Carton edge Sealing machine
