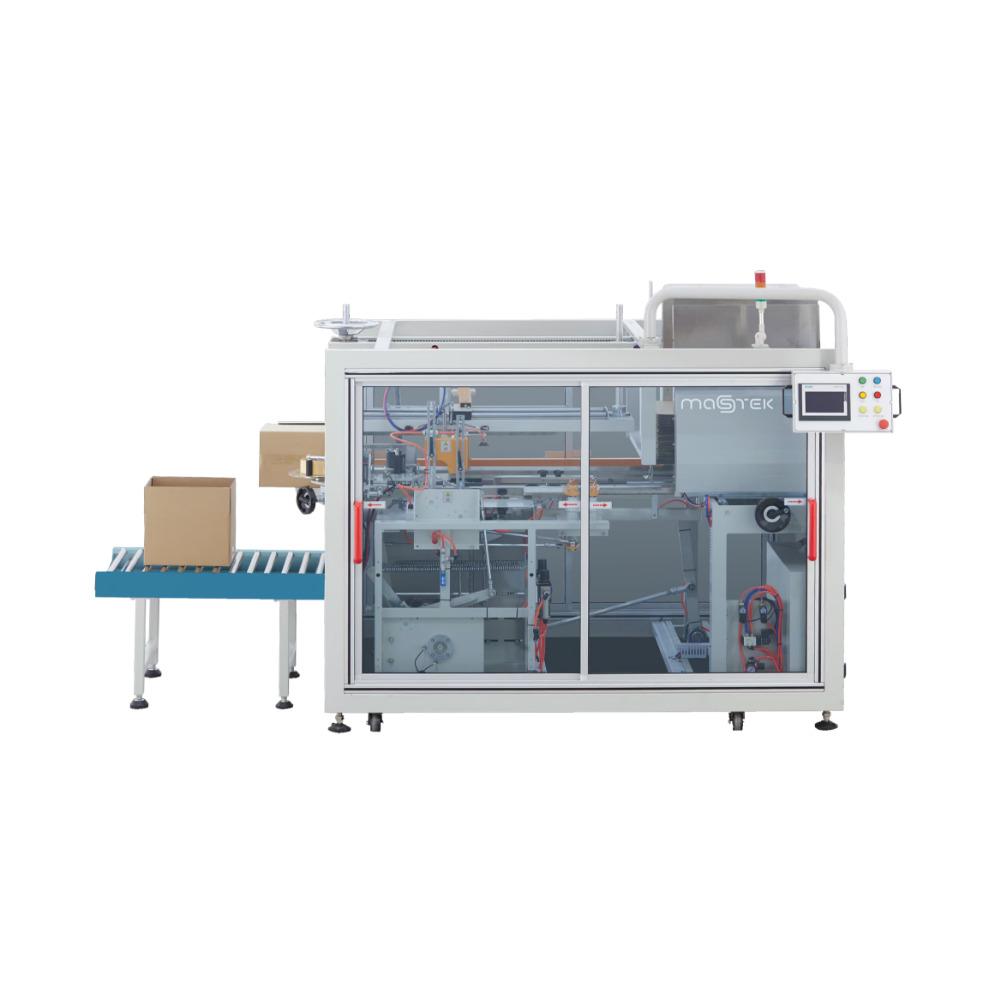

Description
Features
Fast Load Magazine
1.NON STOP Loading Magazine design: Replenish blanks while machine operates. There is no need to stop machine to load magazine, which is more convenient for operator and the working efficiency also been improved.
2.Pre-caution for empty carton box
Fast Exchange Tape Design
1. With a protective door, it is convenient and safe to change the tape when opening the door.
2.Pre-caution：Alarm before the tape is used up, inform the operator to replace the tape in time
Fast Carton Forming System (up to 30ctn/mins)
1. Top and Bottom 4 powered sucker for erecting box
2. continuous bottom fold system, rapid forming the box with bottom seal.
TECHNICAL DATA
| Performance: | |||||||||||
| Throughput Speed | 25-30 Cases/Minute | ||||||||||
| Case (Outside Dimensions) |
250-500 mm L 200-400 mm W 120-400mm H |
||||||||||
| Case Types | |||||||||||
| Wall Types | Single & Double Wall (test for multiple wall) | ||||||||||
| Bottom Seal | |||||||||||
| Tape | 48-72mm | ||||||||||
| Service Requirements | |||||||||||
| Air Supply | 6 Bar (80 Psi) | ||||||||||
| Dedicated Electric | 220V, 1ph, 50/60Hz | ||||||||||
| Machine Data | |||||||||||
| Magazine infeed Capacity | 100 cases (approximate) | ||||||||||
| Weight | 600 kg | ||||||||||
| Dimensions | 2200*1329*1926 mm L*W*H | ||||||||||
| Outfeed Pass Height | 950 mm +/- 10 mm | ||||||||||
STANDARD FEATURE
| Cylinder | AIRTAC | ||||||||||
| Motor | GPG | ||||||||||
| Sensor | OMRON | ||||||||||
| PLC Touch ScreenPre-caution for blank carton boxPre-caution forTape used up |
SIEMENS SIEMENS |
||||||||||
| NON -STOP load magazine design
Safety door system |
|||||||||||
| Horizontal forming box output | |||||||||||
| Certification | CE | ||||||||||
| Machine Warranty | 1 year | ||||||||||
| Optional | |||||||||||
| Bottom seal | Hot glue | ||||||||||
| For Samll size box (48mm tape 15-20 ctn/min) |
Length: 130-280mm Width: 80-200mm Height: 90-200mm |
||||||||||
Engineer Drawings
Packaing Line
